No one buys a 70V for range alone. While it performs incredibly well on that front, it’s the thrilling power boost that sets this Eco Battery apart. Delivering a fun-inducing surge of power with every push of the throttle, this lithium battery is the ultimate upgrade for golf carts rated for 72V, built to elevate performance to the next level.
Storing a powerful 7.2 kWh of energy, the Eco Battery 70.4V 105Ah LiFePO4 lithium battery is an ideal choice when pure power is your goal. Perfect for hilly terrain, multi-passenger carts, and unmatched driving performance, this battery delivers the ultimate in acceleration and enjoyment. Get ready for some skinny pedal fun!
Specifications
| BATTERIES (GEN2) | 38.4V 105Ah | 51.2V 60Ah | 51.2V 105Ah Thru-Hole |
51.2V 105Ah Skinny |
51.2V 160Ah | 70.4V 105Ah |
|---|---|---|---|---|---|---|
| Energy Capacity | 4.0 kWh | 3.0 kWh | 5.3 kWh | 5.3 kWh | 8.1 kWh | 7.3 kWh |
| Nominal Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 70.4V |
| Nominal Ah | 105Ah | 60Ah | 105Ah | 105Ah | 160Ah/td> | 160Ah |
| Max Discharge 3 Seconds | 500A | 360A | 500A | 500A | 500A | 500A |
| Max Discharge 30 Sec | 300A | 240A | 300A | 300A | 300A | 300A |
| Max Cont. Discharge | 175A | 180A | 175A | 175A | 175A | 175A |
| Cell Count | 12 | 16 | 16 | 16 | 32 | 22 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Cell Configuration | 1P12S | 1P16S | 1P16S | 1P16S | 2P16S | 1P22S |
| Cell Chemistry | Lithium Ion Phosphate | Lithium Ion Phosphate | Lithium Ion Phosphate | Lithium Ion Phosphate | Lithium Ion Phosphate | Lithium Ion Phosphate |
| Weight | 70 lbs (31.75Kg) | 70 lbs (31.75Kg) | 94 lbs (42.6Kg) | 102.2 lbs (66.2Kg) | 146 lbs (66.2Kg) | 135.6 lbs (61.5Kg) |
| Dimension LxWxH | 13.37″ x 10.18″ x 10.75″ | 13.37″ x 10.18″ x 11.47″ | 13.14″ x 12.24″ x 10.15″ | 22″ x 9.75″ x 10.43″ | 22″ x 12.125″ x 10.625″ | 22″ x 12.125″ x 10.625″ |
| Charging Temp Range | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ |
| Discharge Temp Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Shell Type | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |

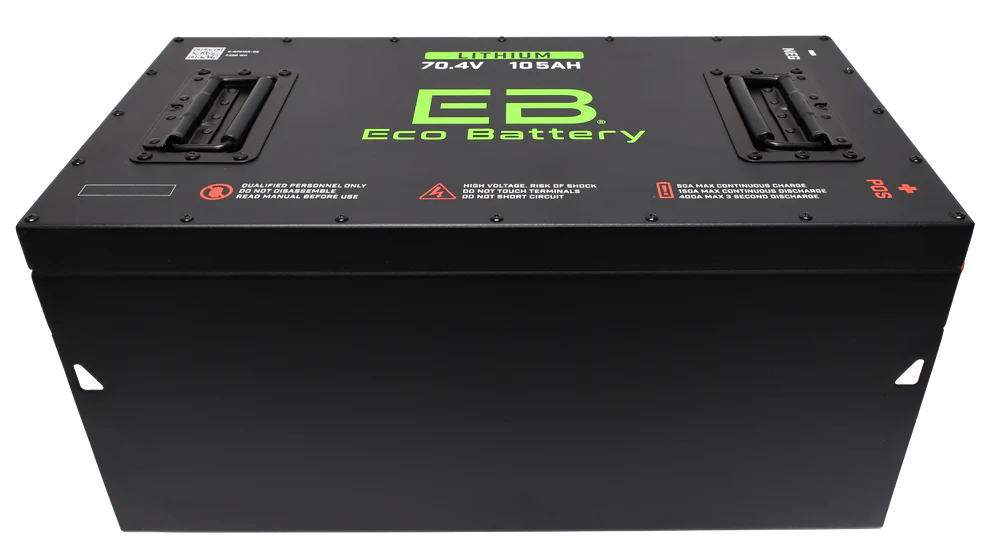

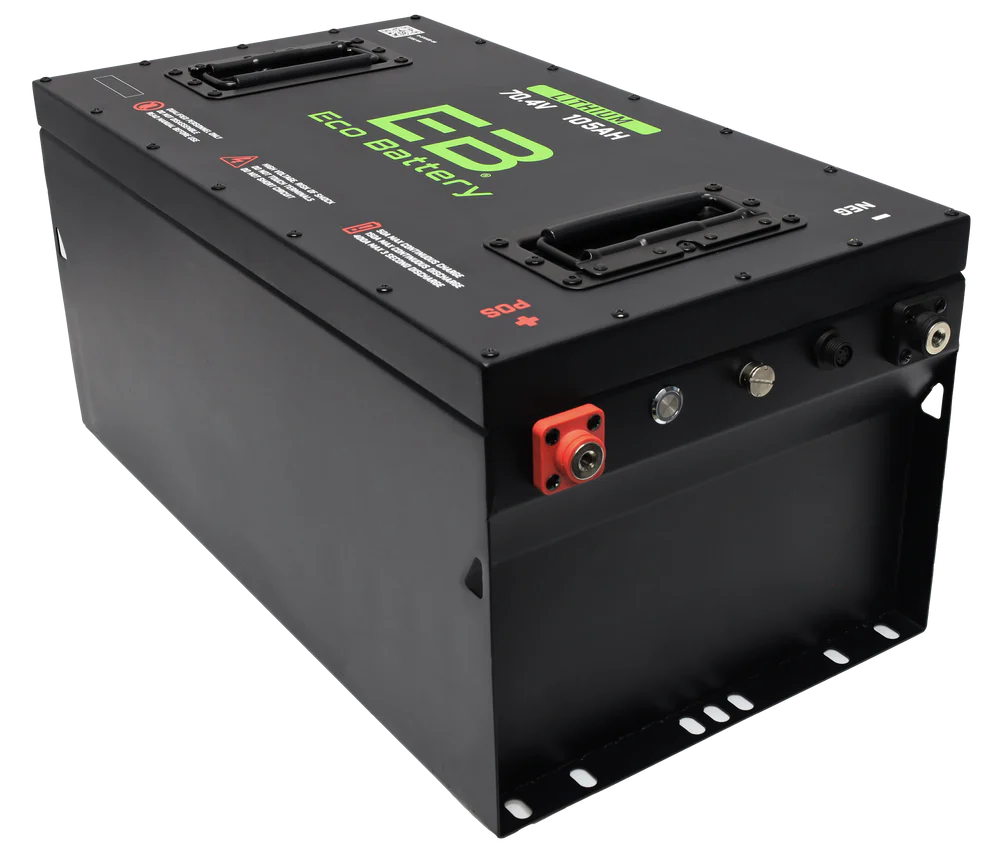

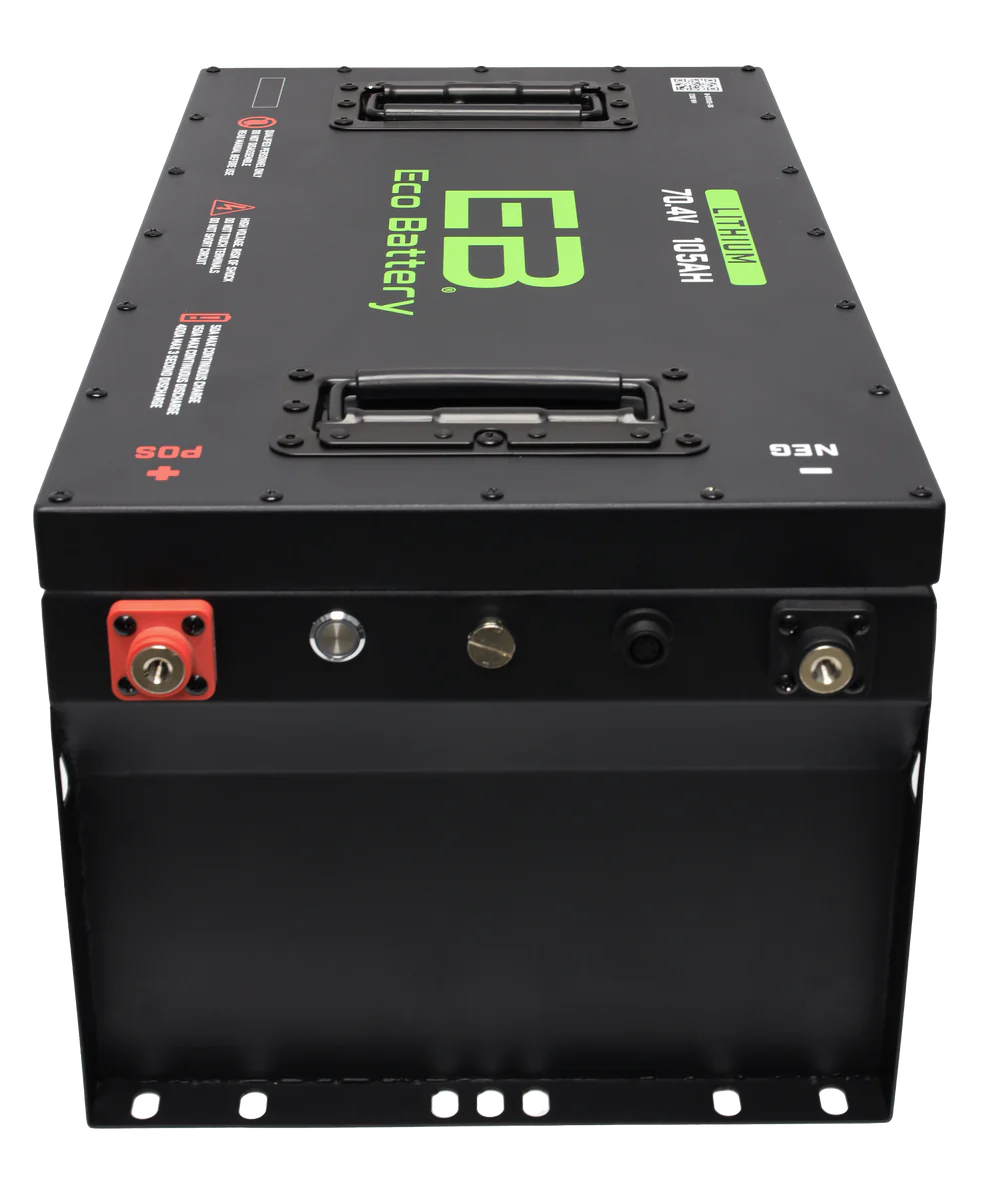

70V 105Ah LiFePO4 Battery
Price: $2,683.00
Batteries LiFePO4 Details
| Availability | In stock |
|---|---|
| Brand | Eco Battery |
| Fitment | No Fitment Data |
