Find More Details About The Product
Specifications
| BATTERIES | 38.4V 105Ah | 51.2V 60Ah | 51.2V 105Ah Thru-Hole |
51.2V 105Ah Skinny |
51.2V 160Ah | 70.4V 105Ah |
|---|---|---|---|---|---|---|
| Energy Capacity | 4.0 kWh | 3.0 kWh | 5.3 kWh | 5.3 kWh | 8.1 kWh | 7.3 kWh |
| Nominal Voltage | 38.4V | 51.2V | 51.2V | 51.2V | 51.2V | 70.4V |
| Nominal Ah | 105Ah | 60Ah | 105Ah | 105Ah | 160Ah | 105Ah |
| Max Discharge 5 Seconds | 600A | 500A | 600A | 600A | 600A | 600A |
| Max Discharge 10 Sec | 550A | 450A | 550A | 550A | 550A | 550A |
| Max Cont. Discharge | 250A | 200A | 250A | 250A | 250A | 250A |
| Cell Count | 12 | 16 | 16 | 16 | 32 | 22 |
| Cell Type | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic | Prismatic |
| Cell Configuration | 1P12S | 1P16S | 1P16S | 1P16S | 2P16S | 1P22S |
| Cell Chemistry | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate | Lithium Iron Phosphate |
| Weight | 78 lbs (35.38Kg) | 78 lbs (35.38Kg) | 98 lbs (44.45Kg) | 113 lbs (51.25Kg) | 165 lbs (74.84Kg) | 146 lbs (66.22Kg) |
| Dimension LxWxH | 13.37″ x 10.18″ x 10.75″ | 13.37″ x 10.18″ x 11.47″ | 13.14″ x 12.24″ x 10.15″ | 22″ x 9.75″ x 10.43″ | 22″ x 12.125″ x 10.625″ | 22″ x 12.125″ x 10.625″ |
| Charging Temp Range | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ | 32F+ |
| Discharge Temp Range | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F | -4F to 140F |
| Shell Type | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel | Powder Coated Steel |
| IP Rating | IP67 | IP67 | IP67 | IP67 | IP67 | IP67 |
Communication
Eco Battery leads the industry by using advanced CAN communication to connect both chargers and the cart’s components with the Battery Management System (BMS), ensuring safety during charging and use. This technology not only extends the lifespan of connected products but also enhances the longevity of high-performance usage. As a leader in the field, Eco Battery offers the most advanced and proprietary battery software available.
Safety
Not all lithium is created equal, whether in its chemistry or cell quality. Eco Battery uses the safest and most stable combination of LiFePO4 Grade A quality lithium cells. Pairing this stable chemical makeup with advanced monitoring, multiple temperature sensors, CAN-enabled chargers, and an advanced BMS system adds multiple layers of safety and longevity.

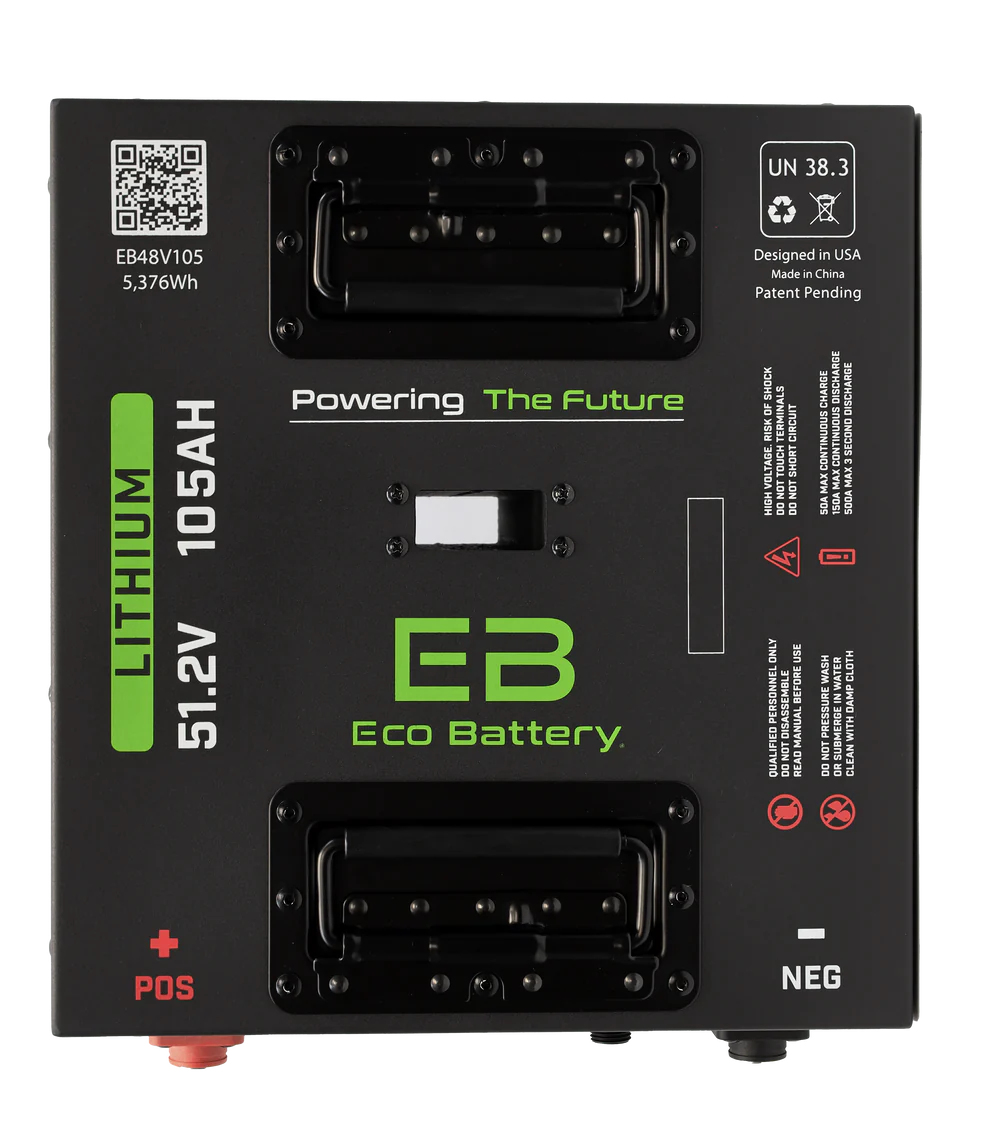

51V 105AH Thru-Hole Battery Bundle / Club Car Precedent/Onward/Tempo
Price: $2,394.00
Battery Bundles Details
| Availability | In stock |
|---|---|
| Brand | Eco Battery |
| Make | Advanced EV |
| Model | EV1 2017-21 |
| Sub Model | 2022 - 24 |
